ELECTRICAL/OPTICAL
Voltage：AC100-240V50/60Hz
Light source：Osram 420/361W Lamp
Rated lifetime：4500Hours
Beam angle: 1.8°
Optic lens: 165mm
GOBO

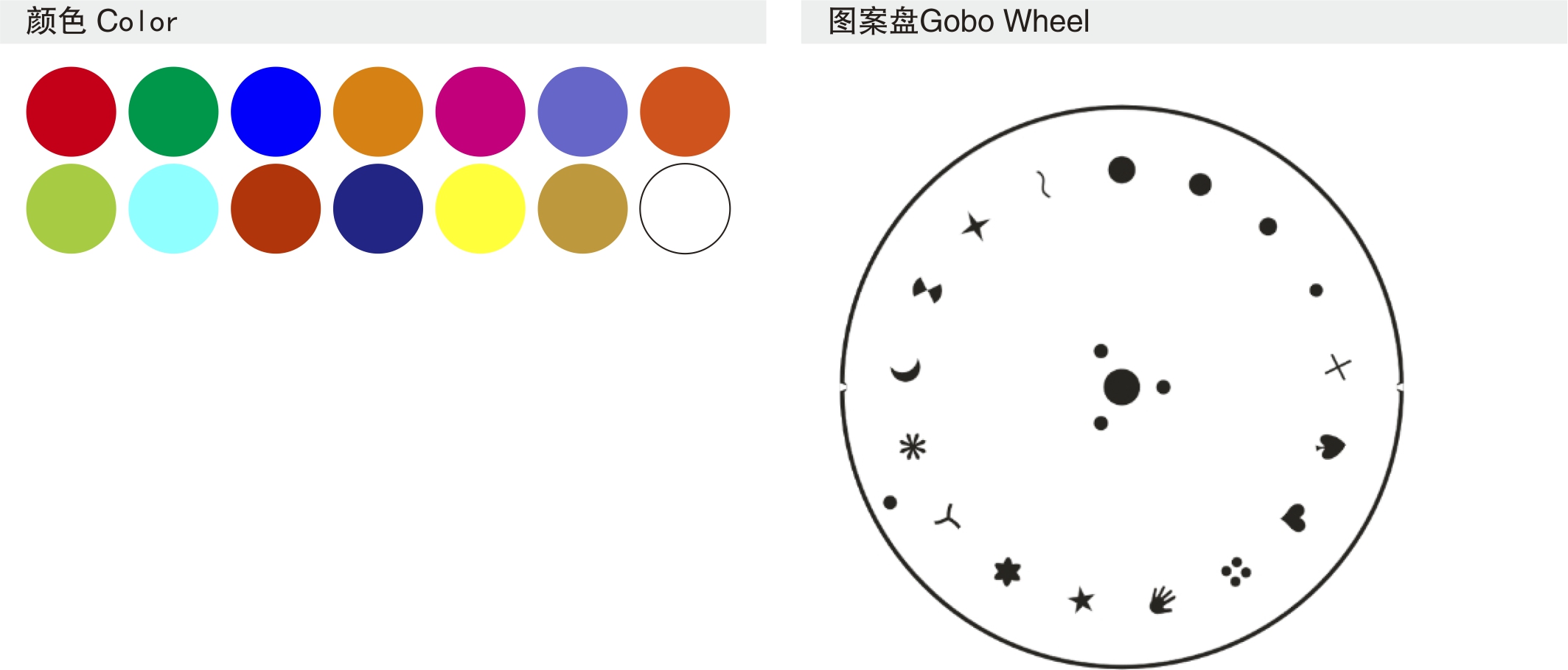

Static gobo wheel: 17 static gobos + open
COLOR
Color wheel：14 colors+open, with rainbow wheel and rainbow effect
DYNAMIC EFFECTS
Pan/tilt: 540°/270°, automatic return correction
Prism wheel 1：(6+12)facet prism, 6 linear prism
Prism wheel 2: (8+16+24) facet prism
Focus: High-precision glass lenses, electronic linear HD focus
Dimmer: 0-100% linear electronic dimming
Strobe: 0-25Hz, synchronized, pulse effects
Frost angle：Linear frost
CONTROL/PROGRAMMING
Channel：17CH
Display：LCD display
Software： Update software by DMX connection
Control mode: DMX 512,RDM,Auto-running ,Master/salve, Sound active, Built-in program
OTHERS
IP class：IP20
Net weight：16.3KG
Gross weight：18KG
Package size: 40x32.5x67CM
Input Voltage: 110-240V,50/60Hz
Lamp: Philips 420W Lamp
Gobo: one static gobo wheel, 16 gobos +open
Color: one color wheel, 13 colors + white,
Prism : 2 prism wheels , it can form 5 kinds of prism effects
when the prisms added each other
Prism wheel 1: 8 facet prism , 6 linear prism
Prism wheel 2: 16 facet prism ,
Beam angle：1.8°
Dimmer : 0-100% electronic adjustment
Strobe: support mechanical strobe and adjustable speed strobe effect,
support strobe macro function;
Frost: With frost effect
Display: LCD display
Channel：17CH
Control Mode：DMX 512,Auto-running ,Master/salve,
Sound active, Built-in program
Movement：Pan 540°；Tilt 270°；
Auto X/Y repositioning, fast, quiet and smooth
Gross weight: 23KG
Net weight: 21KG
Packing size: 480*460*735MM
